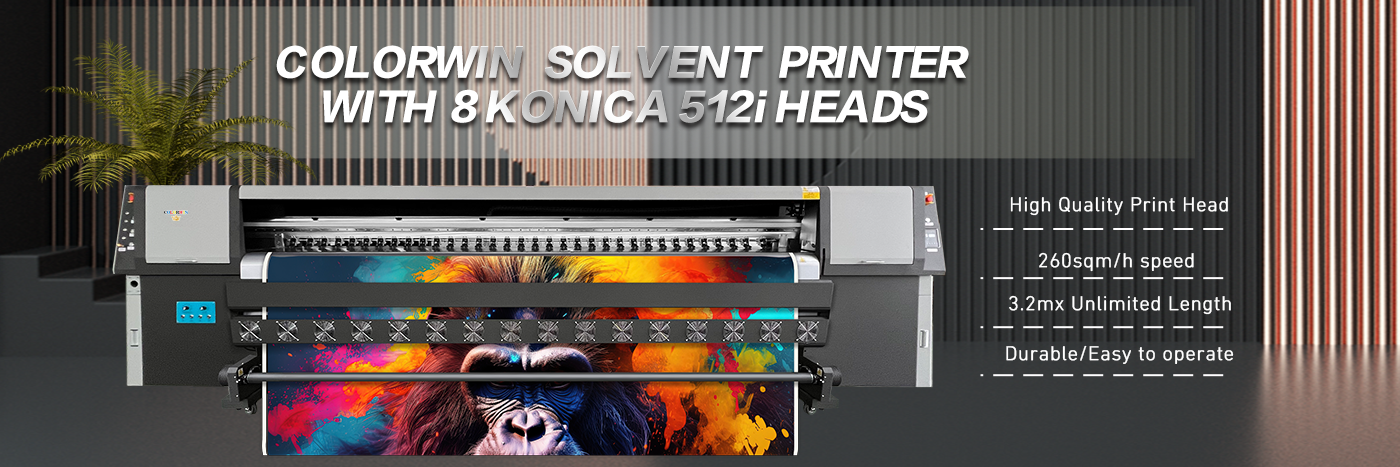

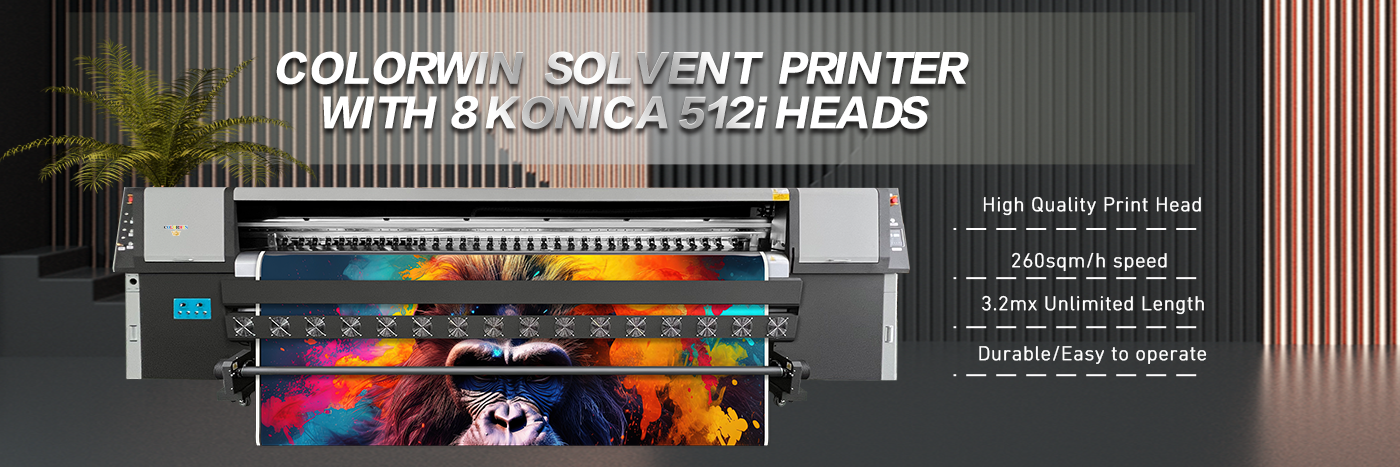

Colorwin Solvent Printer With 8 Konica 512i Heads image

But that's not all. Our Colorwin Solvent printer is not just about speed and resolution, it is about pushing the boundaries of what is possible for banner printing. With innovative Konica 1024i/Konica 512i print heads, experience an ultra fast printing speed of up to 260sqm/h, and every print is a clear and vibrant masterpiece. With our printer, you can offer stunning products that attract your audience and leave a lasting impression. Use Colorwin Solvent printer now to change your product printing experience. Explore the true combination of speed and resolution.



Specialized Print Adsorption Platform

The control area of the vacuum adsorption platform ensures printing stability efficiently.

High Performance Board

High-end board system with good stability and low failure rate.

Efficient Emergency Stop Switch

Quickly turn off power in emergency situations to ensure work safety.

Industrial Grade Motor

High-quality industrial motor drive system ensures the accuracy and stability of equipment.

Humanized Key Panel

Easy to understand operation button panel, convenient to use.

Neat Head Shelf

Neat placement of the head shelf rest,more precise, more stable, to ensure long-termPrint accurately.

APPLICATION

application images
application images
application images
application images
application images
application images

Printing Mode

One

  Group

Two

Group

Three

Group

Konica1024i

360X360dpi(1pass)

250m²/h

500m²/h

N/A

360X720dpi(2pass)

150m²/h

260m²/h

N/A

360X1080dpi(3pass)

120m²/h

130m²/h

N/A

Konica 512i

360X360dpi(2pass)

130m²/h

260m²/h

N/A

360X480dpi(3pass)

90m²/h

180m²/h

N/A

480X540dpi(3pass)

45m²/h

90m²/h

N/A

Print Head

Quantity

Konica 1024i(4-8)Pcs Optional

Konica 512i(4-8)Pcs Optional

Media Type

Outdoor Solvent/Eco-solvent Based RollMedia

(Vinyl,Leather.Artificial,Leather etc)

Printing

Width

3.2mx Unlimited Length

Operation Environment

Temperature 20-30℃

 Humidity 60-70%

Printing

Thickness

≤5mm

Power

Supply

AC 220V,50HZ±10%,UPS is required

Lamp

LED UV Lamp

Ink

Solvent Ink C·M·Y·K


Format

TIFF/JPG/EPS/PDF

Packing Size

/APP Size

L/W/H  5150mm*1150mm*1500mm

            /4942mm*960mm*1370mm

RiP Software

Maintop(Standard)/Photoprint(Optional)

Computer

Configuration

System:Win7/8/10 64bits(Professional/Version)

CPU:≥Inteli5RAM:8GB Hard Disk:SATA500G Hard

Disk Format:NTFS CD Rom:DVD Recordable Spacefor Disk C;100GB at least

Power

5000W

G.W./N.W.

1350kg/1200kg
