Sublimation Printer image

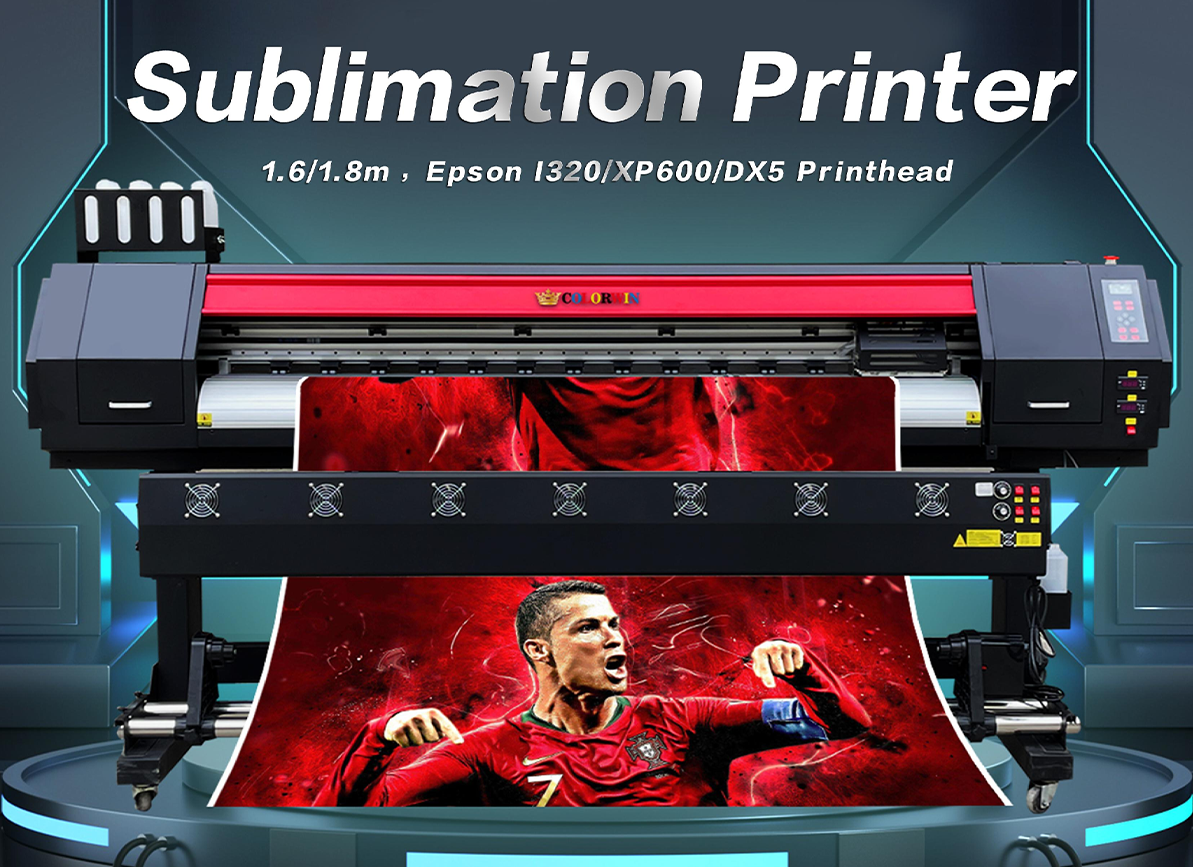

Hot selling 1.6m to 1.8m COLORWIN sublimation printer, print on sublimation paper,then heat press patterns on many items like T-shirt, Cup, Caps etc. It prints with dye sublimation ink perfectly with outstanding speed and ultra high print quality.One year warranty . All life online technical support &after service.
overview images

Epson DX5,XP600, i3200 printheads available.  Meet the requirement of different clients.

Big Functional Control Panel

Adopts the latest program Intelligent Error Auto-Detection boards, it can guide user to find solution very quickly.

Integrated Temperature Control

Control the front, middle and rear heater in one place. Integrated heater controller have less fault than separate ones.

High Quality Branded Guide Rail

Build for long life use and high precision carriage movement.

Wide Pinch Roller

Wide pinch roller keeps smooth movement of the media. And it has proper pressure to ensure accurate media step while not make any footprint of the pinch roller.

Megadyne Belt. High quality. Durable

overview images

IGUS Drag Chain from Germany

IGUS drag chain itself is a guarantee of quality, takes the printer stability to a new level. Effectively protect ink tube and cables

overview images

Anti-collision Function

Anti-collision system is equipped to protect the printhead and carriage all the time

overview images

Heating and Drying System

Front and middle and rear heating system, frond drying fan are standard equipped to help dry the printed material fast.

overview images

Smooth winding

Double steel pipe constant force high precision cloth feeding system, to ensure the continuous smooth transmission of paper.

overview images

Ink station

Automatic up&down ink station, automatic cleaning closed heads nozzles, so that the heads nozzles are always in good condition.

overview images

Large capacity ink supply

Intelligent ink supply system, constant liquid level, to ensure high speed and high output of printing ink, capacity up to 1000ml.

APPLICATION

Model NO. S161 S1612 S181 S1812
Printhead 1/2 Epson XP600/DX5/I3200 heads
Resolution(dpi) 1440dpi  2880dpi 1440dpi        2880dpi
Media Width 1.6m 1.8m
Types Sublimation paper
Speed Draft 20 sqm/h 25 sqm/h 20 sqm/h 30 sqm/h
Standard 15 sqm/h 19 sqm/h 15 sqm/h 22sqm/h
Quality 10 sqm/h 14 sqm/h 10 sqm/h 15sqm/h
Ink Color CMYK CMYK CMYK    CMYK
Ink Type Sublimation Ink
Ink Droplet 1.5-21pl Variable
Cleaning Automatic Cleaning, Anti-Clogging Flash Function & Capping System
Feed & Take Up Automatic Media Feeding (Standard)  & Take Up System (Optional)
Environment Temperature: 20-28°C, Humidity: 40-60%
Rip Software Maintop (Standard) / PhotoPrint (Optional)
Interface USB3.0
Power Machine 50/60HZ, 110/220V, 1200W
Packing Size & Weight 2700x750x750mm / 160 KG 2950x750x750mm / 1900 KG
